AP 110 OneBoard Kit

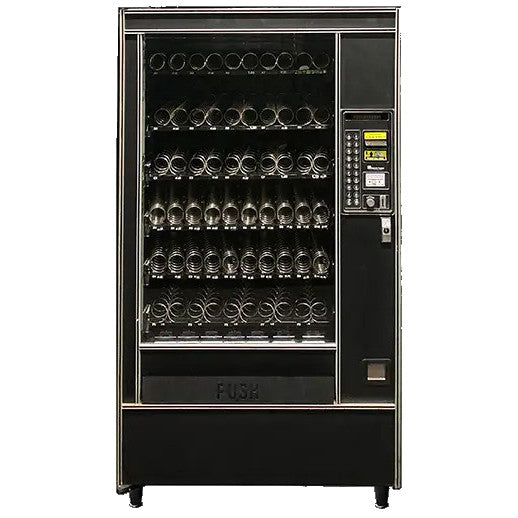

New OneBoard upgrade control board kit for the Automatic Products 110 Series Snackshop vending machines. You can use the existing 110v Coin Changer and 110v Pulse validator if desired, or use either changer or validator with MDB payment devices like a card reader

Our vending products should be installed by a qualified vending technician in accordance with instructions provided in each kit. Failure to do so could result in personal injury or damage to product and/or machine.

RVMC-110-1L Kit Fits Models: 111, 112, 113

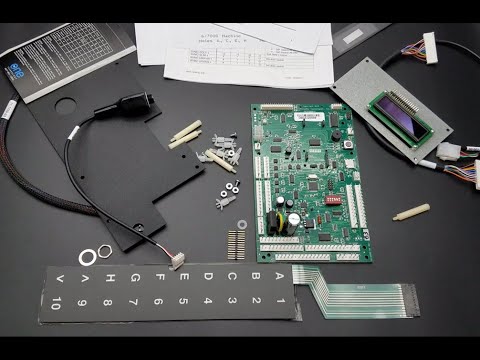

Kit includes:

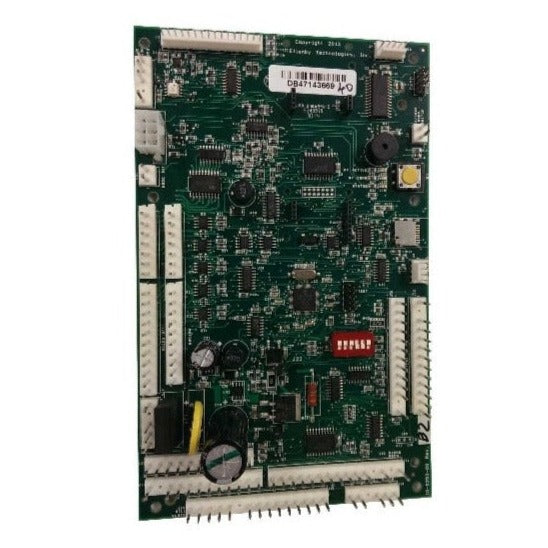

• Control board (10-0253-00)
• 2-line OLED display (05-0091-10L)
• Display lens (05-0155-00) & cable (11-1700-01L)
• Retrofit Keypad (16-0009-00) and Harness (11-1700-03)
• MDB Harnessing (11-1700-06)
• Metal Board Cover Plate (05-0150-02) with mounted DEX-27 cable
• Mounting hardware
• Installation instructions
• Quick reference label

• CLICK HERE TO ORDER INONE GUARANTEED PRODUCT DELIVERY VEND SENSORS

Engineered and Manufactured in the USA

PRODUCT FEATURES

• Easy Installation - Uses existing OEM harnesses and fits on the original footprint
• Allows Micromech, Pulse or MDB - Use Micromech Changer & Pulse Bill Acceptor or Mix and match with MDB
• Dual Cashless – Operate multiple cashless payment devices (credit card readers or school payment systems)
• New Display – New 2 line, super bright and programmable OLED display
• Remote Pricing – Update Prices remotely using telemetry (card reader)
• DEX – Allows your machine to be both DEX & MDB capable
• VMS Compatible – Follows NAMA spec and is compatible with all major VMS providers
• Uses microSD card to upgrade firmware - 32Gb or less capacity

All InOne products come with Free 5-star rated live phone support and 1 Year Limited Warranty

Recommended Items: AP 110 Sensor Kit (10-0078-00), Surge Protector

AP 110 Installation Manual
