USI CB300 (3179) CB500 (3189) & CB700 (3151) SODA OneBoard Kit

New replacement control board kit upgrade for the USI CB300, CB500 and CB700 drink vending machines

RVMC-USI SODA-1L kit Fits Models: CB300 (model 3179) 6-select,  CB500 (model 3189) 10-select and USI CB700 (model 3151) 12- select machines with RED displays only. This kit is not appropriate for blue display machines as they use a different controller this kit will not support. This upgrade supports CB300 and CB500 models based on the USI MCB-12 Controller. CB700 model support is based on a Coinco Controller

Our vending products should be installed by a qualified vending technician in accordance with instructions provided in each kit. Failure to do so could result in personal injury or damage to product and/or machine.

Kit includes:

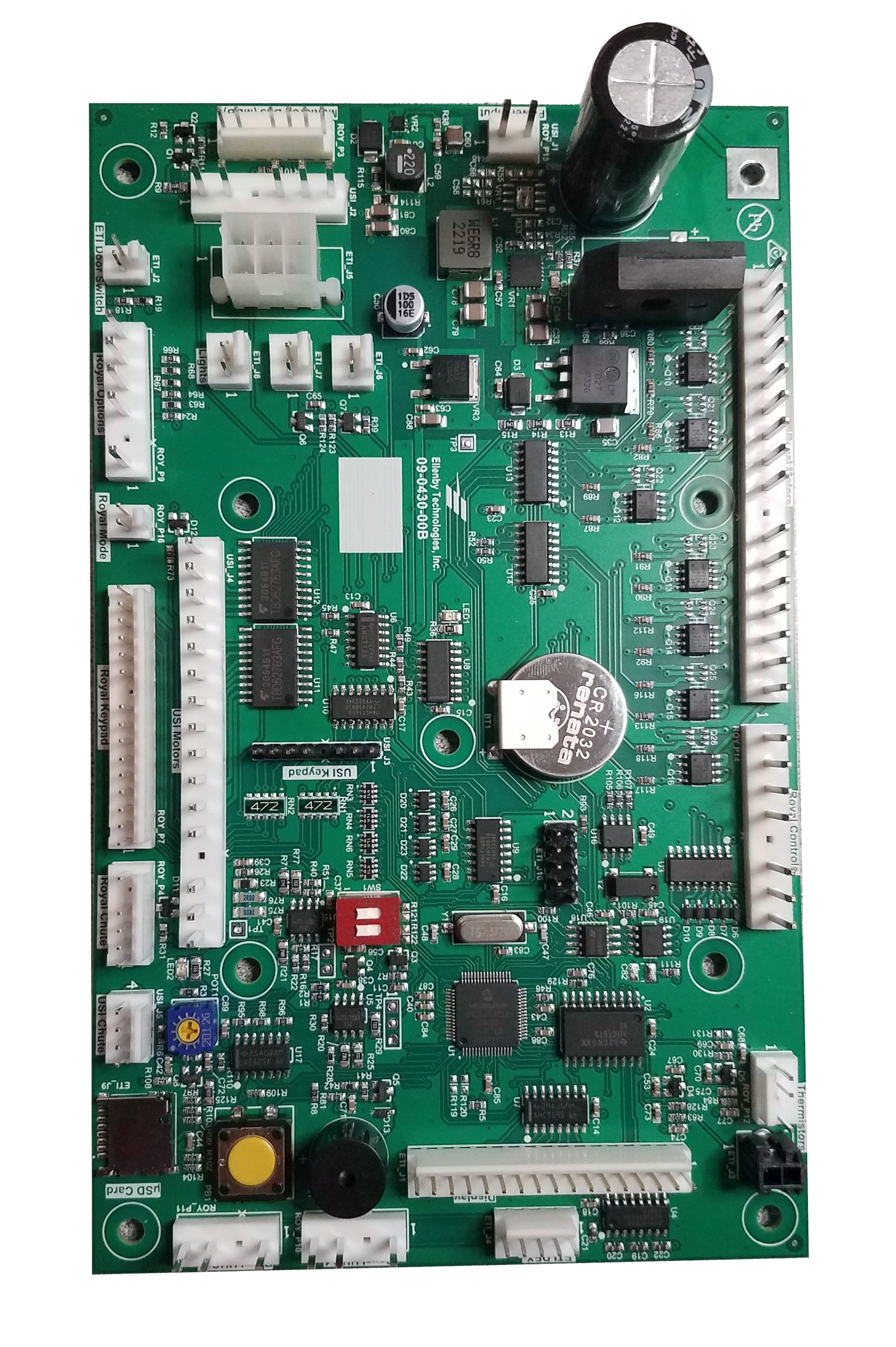

• Control board (10-0430-256A)
• 2-line OLED display (10-0064-10L)
• Display lens (05-0172-00) & Lens Mask (05-0173-00)
• DEX-27 DEX Cable
• Mounting hardware (05-0153-10)
• Installation instructions
• Quick reference label


Engineered and Manufactured in the USA

PRODUCT FEATURES

• Easy Installation - Uses existing OEM harnesses and fits the original footprint
• Supports MDB payment devices only
• Dual Cashless – Operate multiple cashless payment devices (credit card readers or school payment systems)
• New Display – New 2 line, super bright and programmable OLED display
• Remote Pricing – Update Prices remotely using telemetry (card reader)

• DEX – Allows your machine to be both DEX & MDB capable
• VMS Compatible – Follows NAMA spec and is compatible with all major VMS providers
• Uses microSD card to upgrade firmware - 32Gb or less capacity

SPECIAL NOTE FOR MODEL CB300 ONLY: Machine requires additional third party parts for installation. Parts include new front bezel assembly, display lens and mounting hardware which can be purchased for $50 by contacting  Mike at Vending720sales@icloud.com

CB500 Installation Guide

CB700 Installation Guide

Configuration Guide

All InOne products come with Free 5-star rated live phone support and 1 Year Limited Warranty

Recommended Items: Surge Protector
